Drilling Rigs with V-kinematics

The V-model line offers

  • large drilling diameters
  • large drilling depths
  • extended maintenance intervals
  • power transmission with low vibrations thanks to a robust design of the kinematic system

Drilling Rigs with V-kinematics at a glance

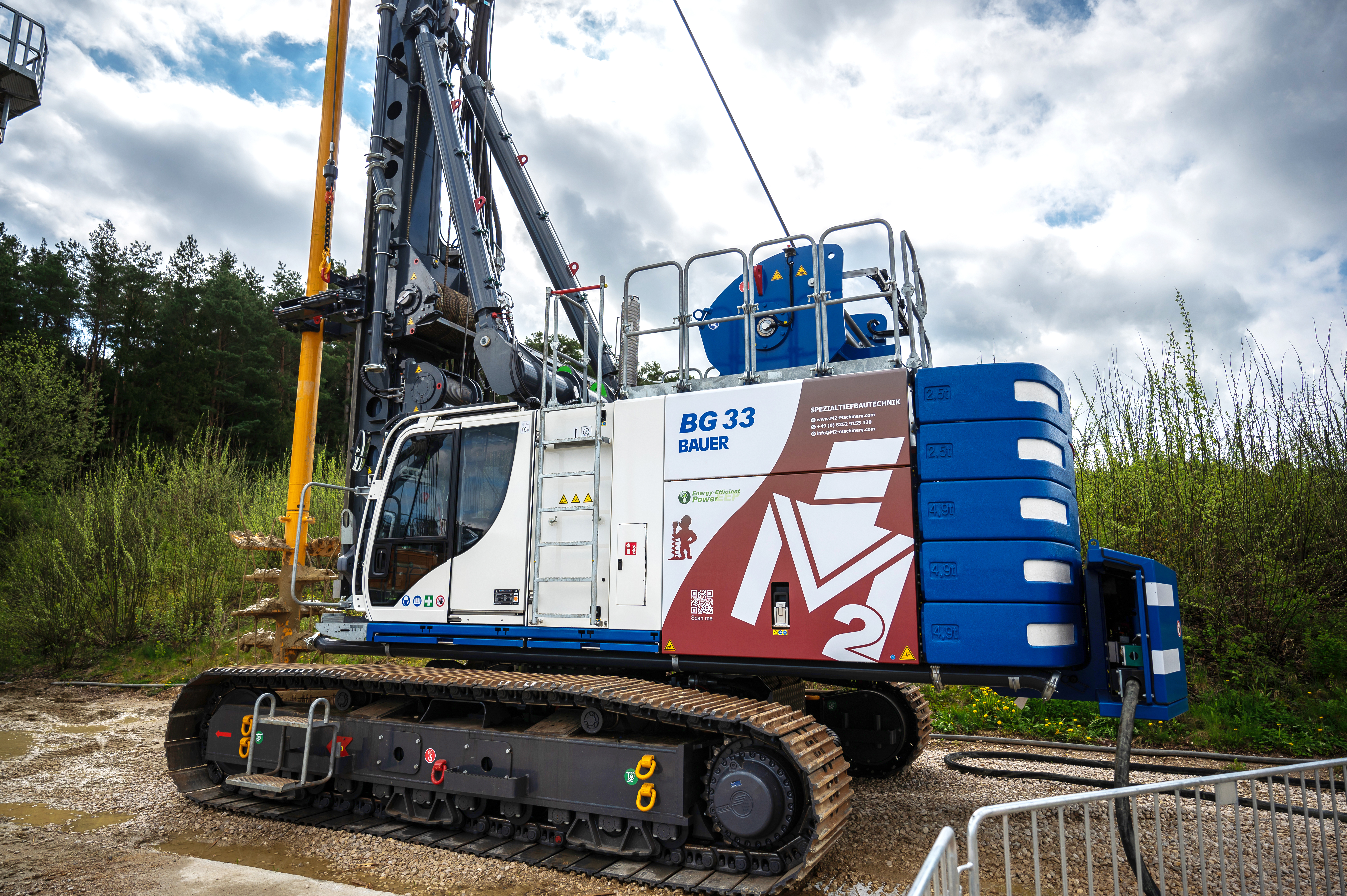

Drilling Rig BG 33 BT 85

Technical details

Icon Drehmoment
Max. torque (342 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (72.4 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 33 BT 85

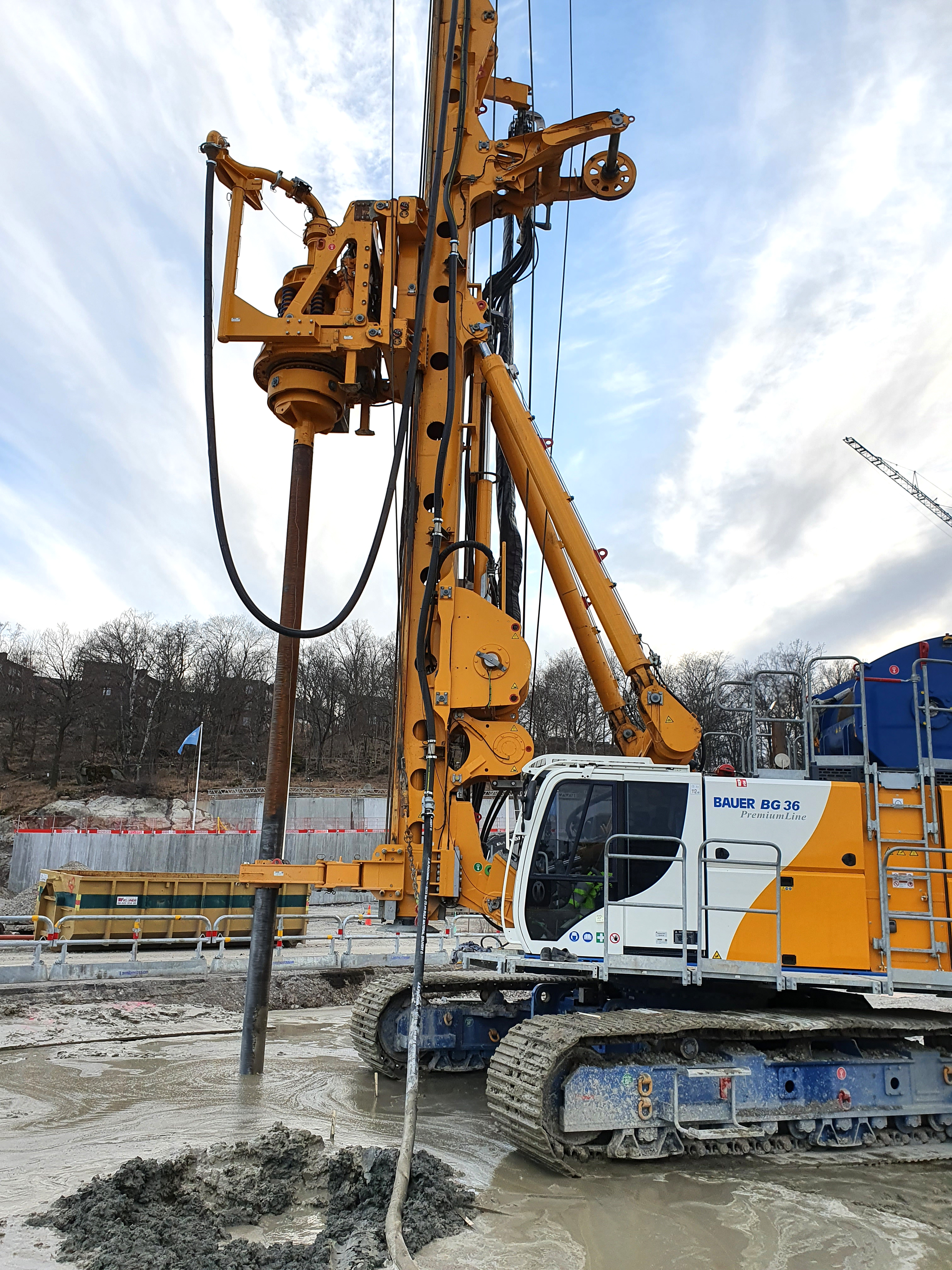

Drilling Rig BG 36 BS 95

Technical details

Icon Drehmoment
Max. torque (385 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (100,0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 36 BS 95

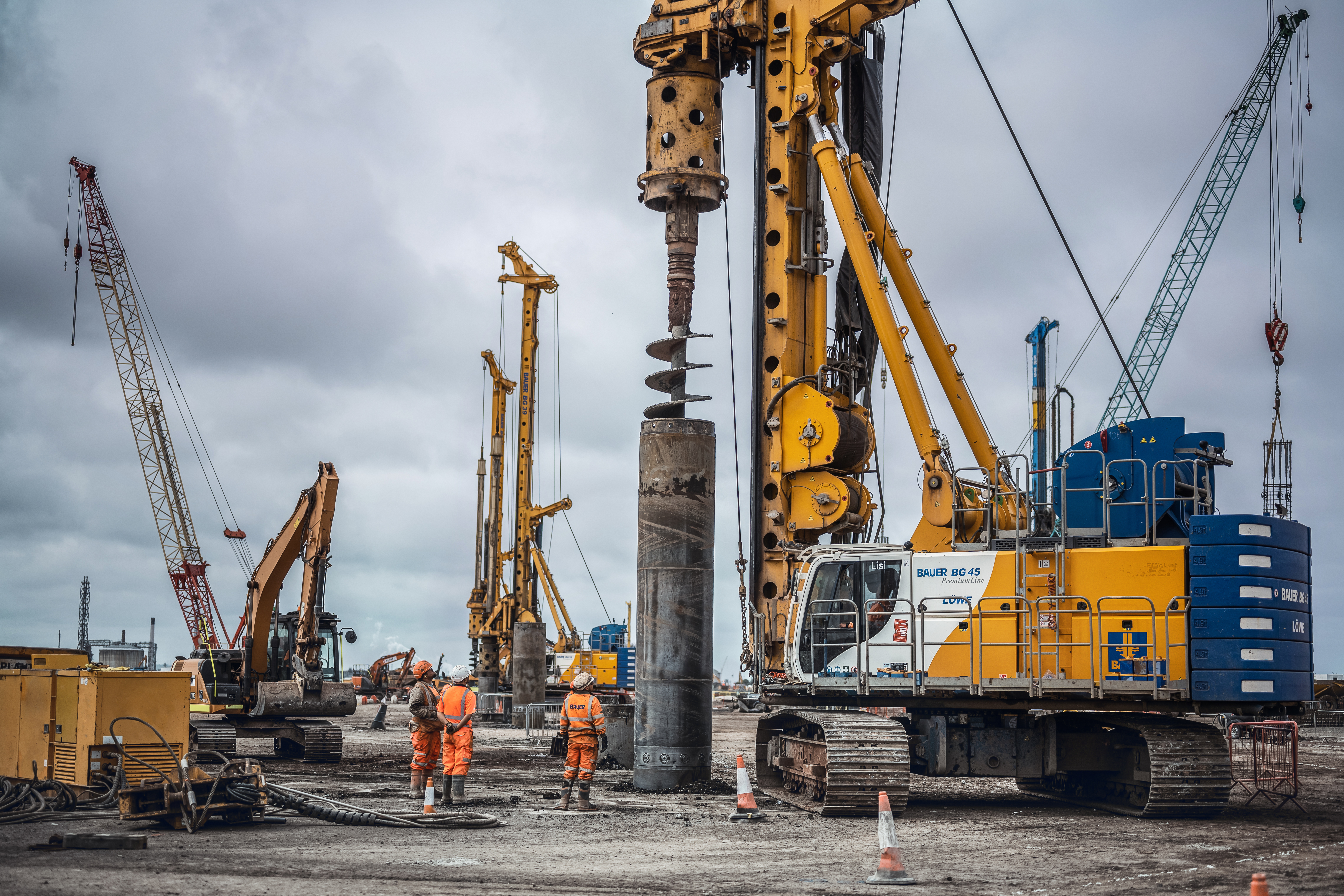

Drilling Rig BG 45 BS 95

Technical details

Icon Drehmoment
Max. torque (461 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (100.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (3,700 mm)
to the Product
Drilling Rig BG 45 BS 95

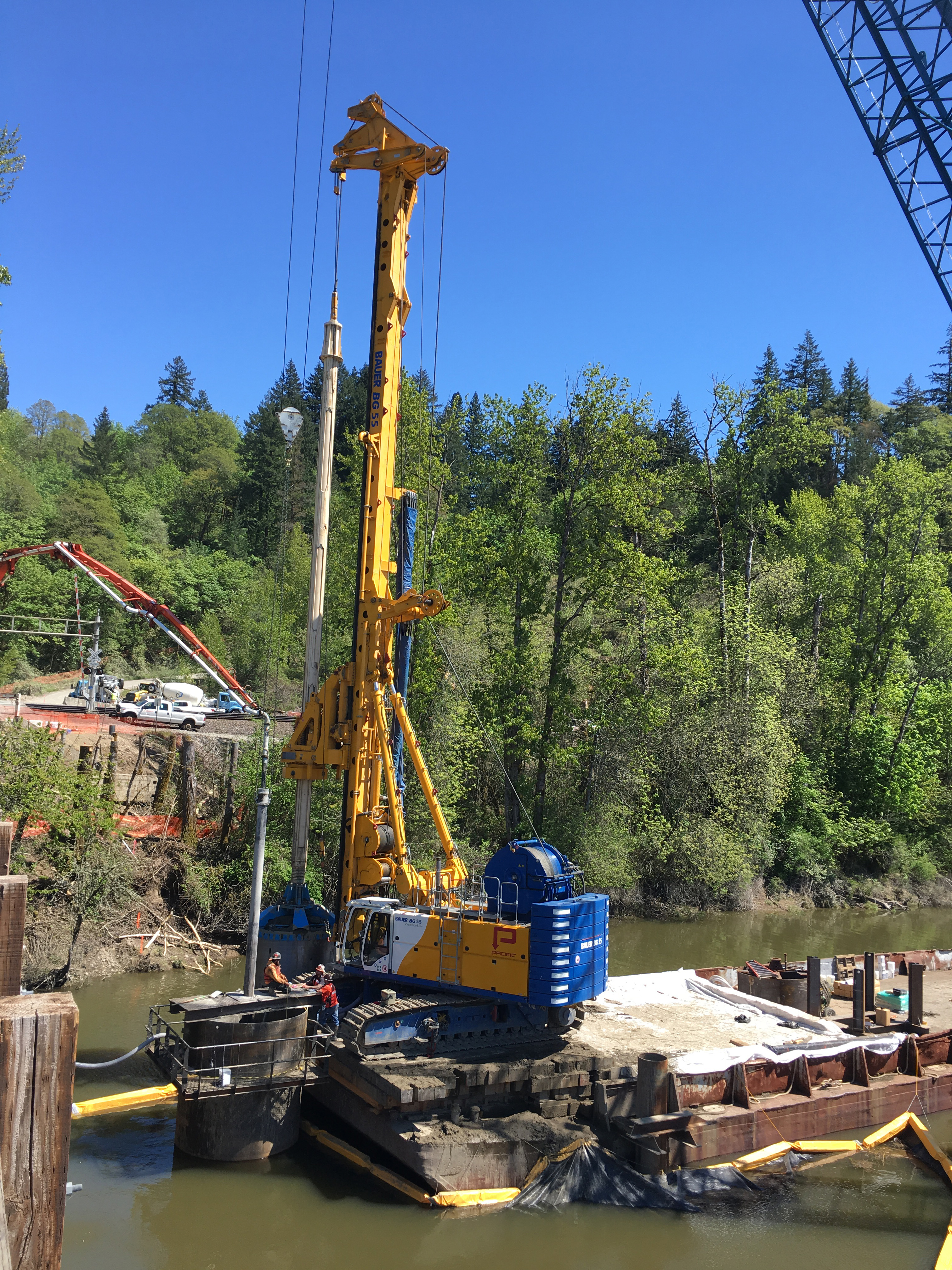

Drilling Rig BG 55 BS 115

Technical details

Icon Drehmoment
Max. torque (553 kNm)
Icon Bohrtiefe
Max. drilling depth Kelly (126.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (3,700 mm)
to the Product
Drilling Rig BG 55 BS 115

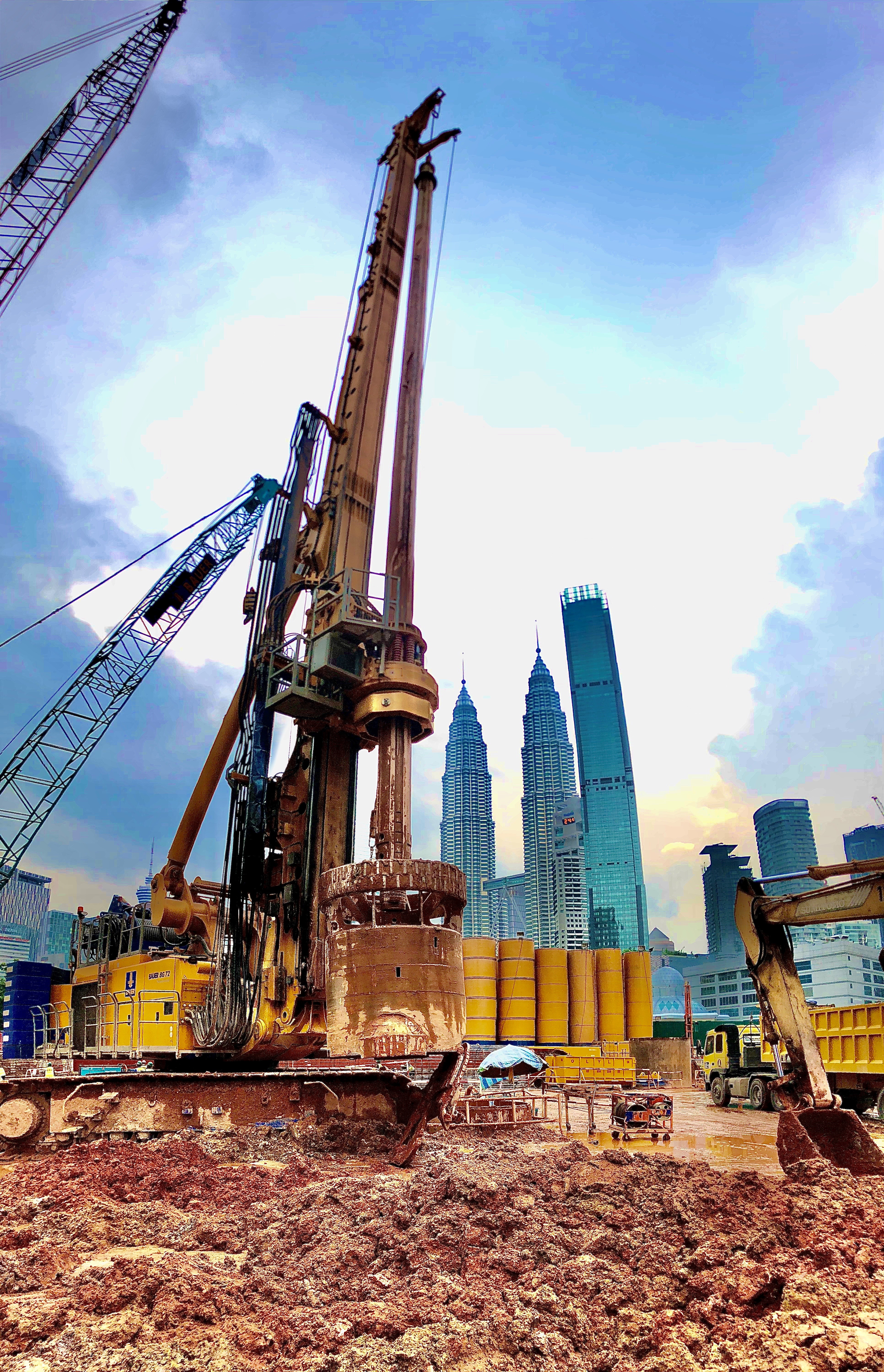

Drilling Rig BG 72 BT 180

Technical details

Icon Drehmoment
Max. torque (721 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (125.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (4,600 mm)
to the Product
Drilling Rig BG 72 BT 180
Drilling Rig eBG 33 Electric Drive

Technical details

Icon Drehmoment
Max. torque (342 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (72.4 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig eBG 33 Electric Drive
